Zero-Turn / ZT XL
(based on reviews)

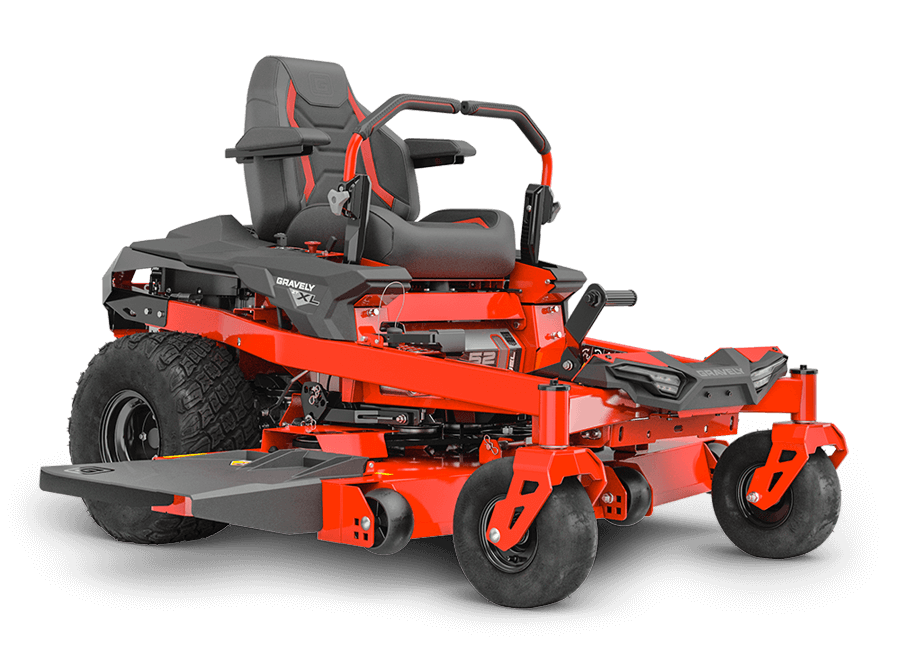

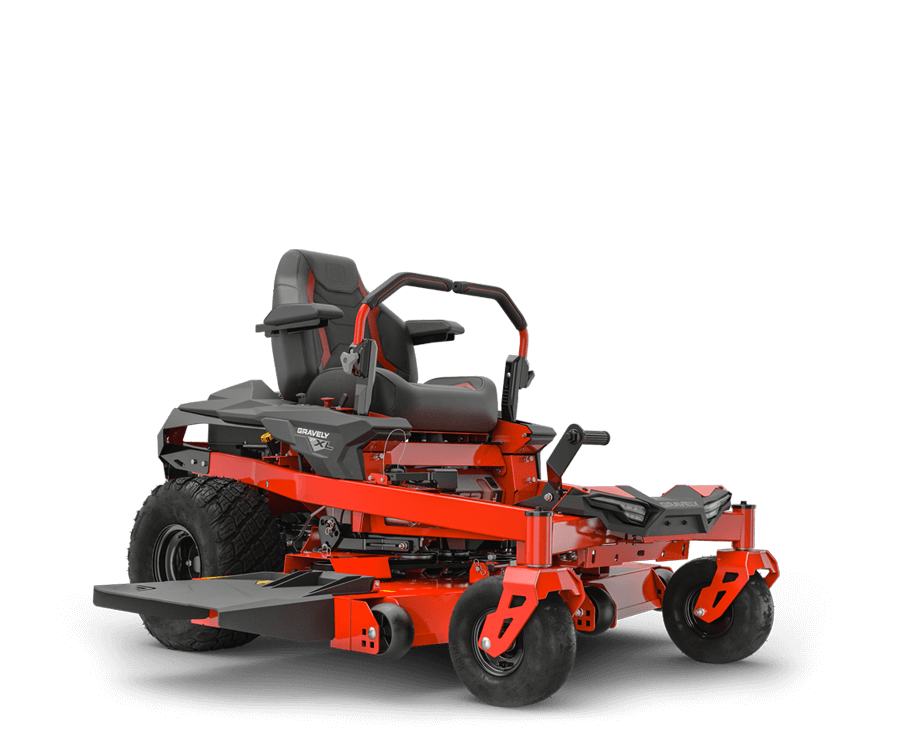

ZT XL

AN UPGRADE TO ANY PROPERTY.

The ZT XL treats residential properties like a pro thanks to its professional-grade power and heavy-duty features. It’s built to handle big jobs while it delivers the comfort needed to mow acre after acre. This is a residential machine with the heart and soul of a commercial mower.

Features

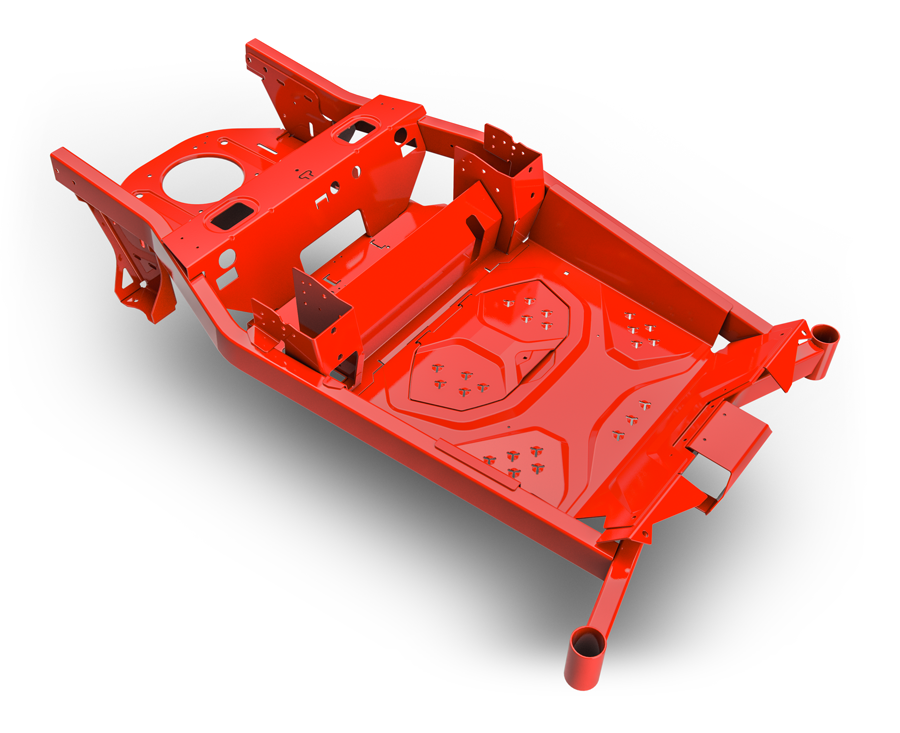

One-piece, Fully-Welded Tubular Chassis

One-piece, Fully-Welded Tubular Chassis

This all-new chassis displays strength and durability with its closed tube frame rails and fully welded construction techniques influenced by our commercial applications.

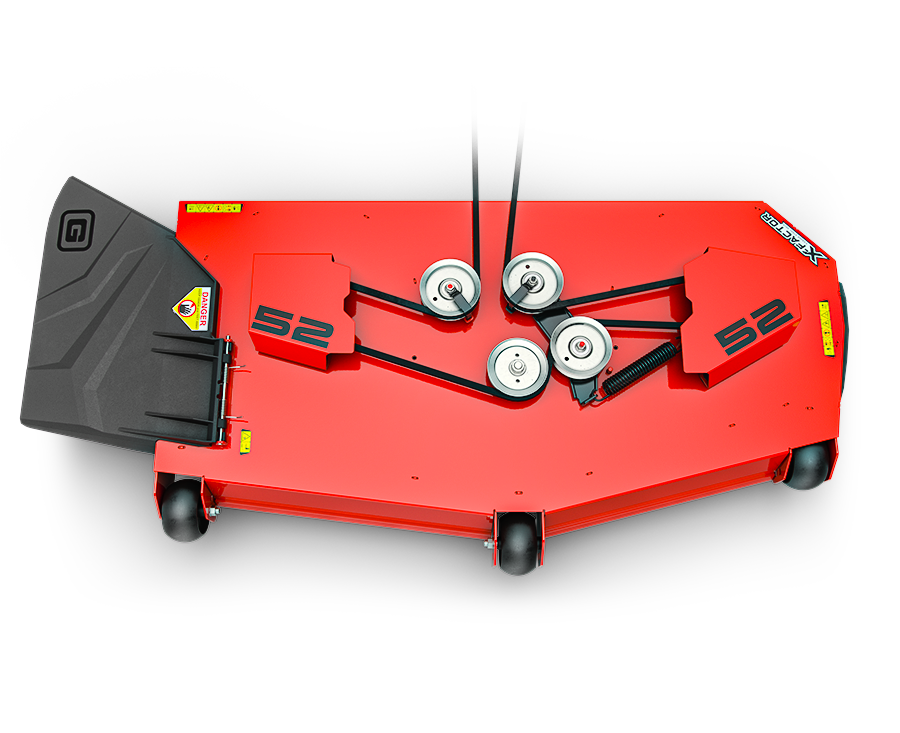

New X-Factor® 11-gauge Fabricated Deck

New X-Factor® 11-gauge Fabricated Deck

Airflow is optimized in this all new 4 1/2 inch-deep deck. A reinforced sloped nose allows more room for grass to stand up ahead of the cutting chamber and caged anti-scalp wheels protect your lawn from minor bumps and scrapes.

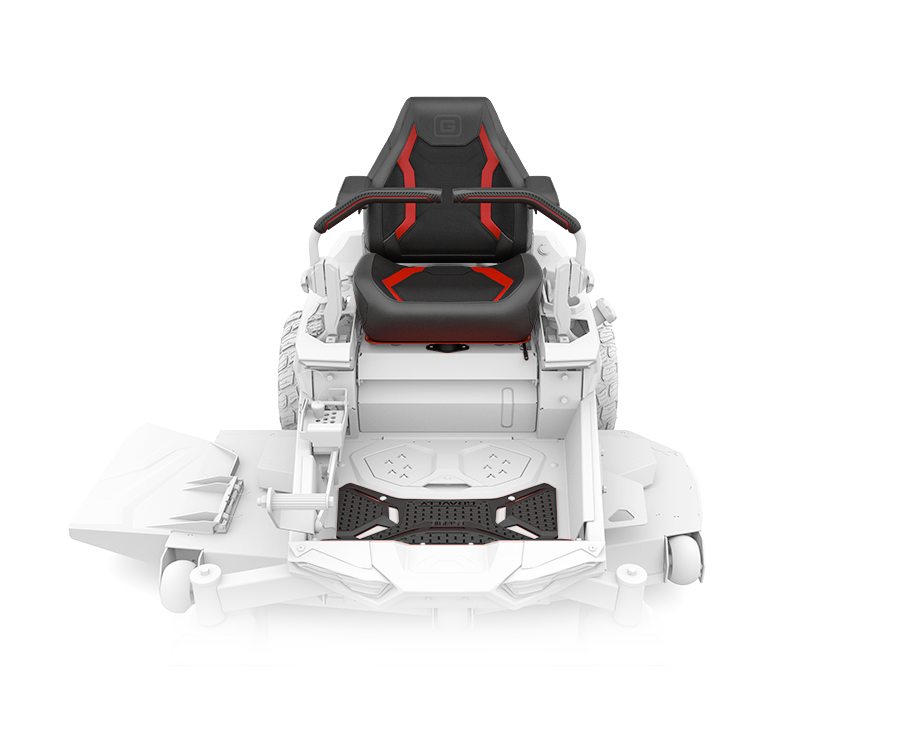

New Taller and Wider Seat with Padded Armrests, Taller Seat Base

New Taller and Wider Seat with Padded Armrests, Taller Seat Base

Ready for the long mow! A 22” tall seat provides more back support and is mounted on a taller seat base to make it easier to stand up and sit down. Armrests deliver extra cushion for more comfort.

Specifications
Model Deck Size Engine Manufacturer Engine Rating Drive System Fuel System Ground Speed Acres/HR Parts Diagrams
918012 42" Kawasaki® FR651V 21.5 HP / 726 CC Hydro-Gear® ZT-2800 3.5 gal (13.2 L) 7 / 3 mph (4.4 / 1.9 km/h) 2.9 View
918013 48" Kawasaki® FR691V 23 HP / 726 CC Hydro-Gear® ZT-2800 3.5 gal (13.2 L) 7 / 3 mph (4.4 / 1.9 km/h) 3.4 View
918014 52" Kohler® KT740 25 HP / 725 CC Hydro-Gear® ZT-2800 3.5 gal (13.2 L) 7 / 3 mph (4.4 / 1.9 km/h) 3.6 View
918015 52" Kawasaki® FR691V 23 HP / 726 CC Hydro-Gear® ZT-2800 3.5 gal (13.2 L) 7 / 3 mph (4.4 / 1.9 km/h) 3.6 View
918016 60" Kawasaki® FR730V 24 HP / 726 CC Hydro-Gear® ZT-2800 3.5 gal (13.2 L) 7 / 3 mph (4.4 / 1.9 km/h) 4.2 View
Accessories
Powered 2-Bin Bagger

Powered 2-Bin Bagger

Save time, energy and money by keeping your lawn clean and free of grass clippings, giving it a well manicured look time after time. Powered conversion kits available (718009 - 42") (718017 - 48") (718010 - 52").

42", 48", 52" & 60" Decks: Part 81800100 - 6 Bushel
Maintenance Kit

Maintenance Kit

Tune up your Gravely zero-turn, allowing it to consistently perform at industry leading levels by completing routine maintenance using these factory authorized OEM parts.

70721300 - Services KT735-3056,  KT740-3068, KT745-3069, KT740-3089, KT745-3086
70721700 - Services FR651V, FR691V, FR730V, FS600V




Powered 2-Bin Bagger

Powered 2-Bin Bagger

Save time, energy and money by keeping your lawn clean and free of grass clippings, giving it a well manicured look time after time. Powered conversion kits available (718009 - 42") (718017 - 48") (718010 - 52").

42", 48", 52" & 60" Decks: Part 81800100 - 6 Bushel
Maintenance Kit

Maintenance Kit

Tune up your Gravely zero-turn, allowing it to consistently perform at industry leading levels by completing routine maintenance using these factory authorized OEM parts.

70721300 - Services KT735-3056,  KT740-3068, KT745-3069, KT740-3089, KT745-3086
70721700 - Services FR651V, FR691V, FR730V, FS600V
