Actual product may vary
Zero-Turn / ZT HD
(based on reviews)

ZT HD

EXPECTATIONS ELEVATED.

More style, more comfort, more speed, and more precision have made the ZT HD one of the top selling machines in its class. It was built to commercial standards for power and durability. The only thing that makes it a residential mower is its address.

Features
Seat Isolation

Seat Isolation

Removes vibrations to decrease fatigue by absorbing the rough terrain so your body doesn’t have to.

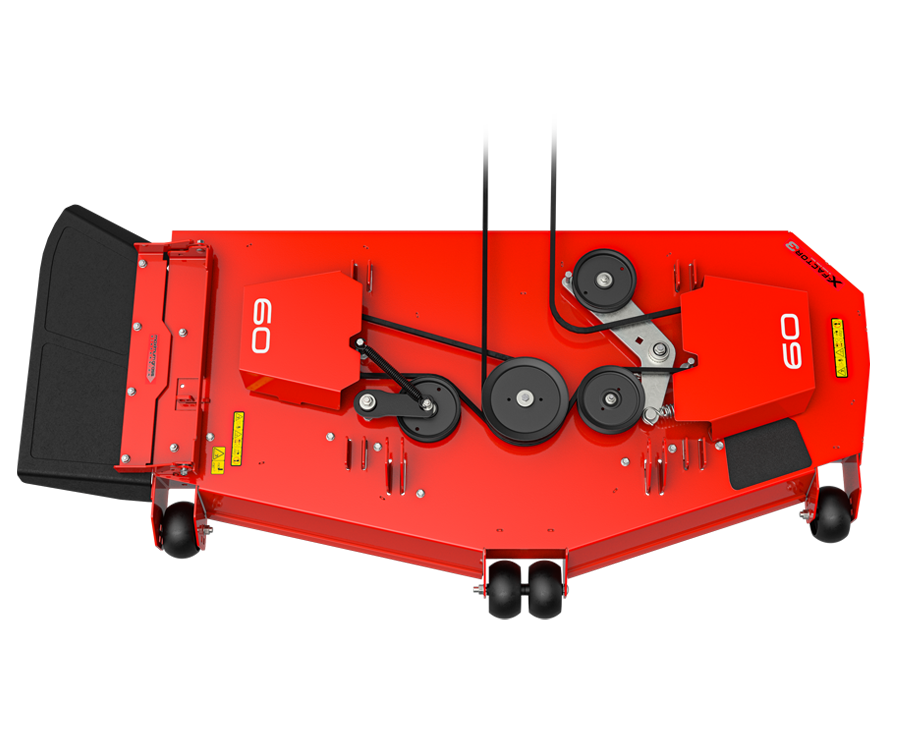

Commercial Deck

Commercial Deck

The 5 ½ inch deep fabricated 10-Gauge steel deck provides exceptional airflow and cutting performance with industrial-strength peace of mind, backed by the machine’s 4-year limited warranty.

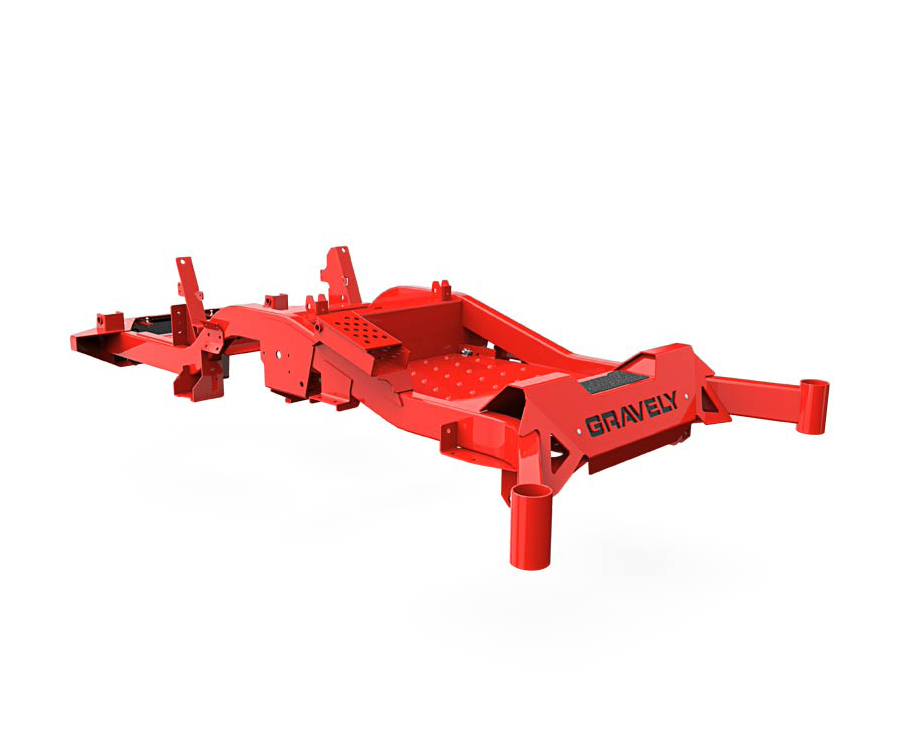

Automotive-Style Tubular Frame

Automotive-Style Tubular Frame

Increases durability by withstanding force from any direction. This high-strength, premium frame is positioned with a lower center of gravity to improve stability while mowing on hillsides.

Specifications
Model Deck Size Engine Manufacturer Engine Rating Drive System Fuel System Ground Speed Acres/HR CARB Compliant Model Parts Diagrams
991166 60" Kawasaki® FR730V 24 HP / 726 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 4.8 N View
991266 44" Kawasaki® FR651V 21.5 HP / 726 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 3.6 N View
991268 48" Kawasaki® FR691V 23 HP / 726 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 3.9 N View
991270 52" Kawasaki® FR691V 23 HP / 726 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 4.2 N View
991272 60" Kawasaki® FR730V 24 HP / 726 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 4.8 N View
991274 48" Kohler® KT740 25 HP / 725 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 3.9 N View
991276 52" Kohler® KT740 25 HP / 725 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 4.2 N View
991278 60" Kohler® KT745 26 HP / 725 CC Hydro-Gear® ZT-3100 5 gal (18.8 L) 8 / 4 mph (12.8 / 6.4 km/h) 4.8 N View
Accessories
Powered 2-Bin Bagger

Powered 2-Bin Bagger

Save time, energy and money by keeping your lawn clean and free of grass clippings, giving it a well manicured look time after time. Select mounting kit required (791063 - 44"/48") (791065 - 52") (791066 - 60")

Part: 89100800
Mulching Kit

Mulching Kit

This specialized, non-discharging baffle and blade kit recuts grass clippings into a fine mulch, eliminating cleanup time and returning rich nutrients back to your soil for a naturally lush lawn.

44" Kit: Part 79109500
48" Kit: Part 79109600
52" Kit: Part 79220200
60" Kit: Part 79109800
Front Caster Suspension Forks

Front Caster Suspension Forks

Smooth the ride on bumpy terrain with Gravely OEM suspension forks. They’re specially designed to deliver more comfort and control when your mower is on the job.

Part: 79108300
Full Suspension Seat

Full Suspension Seat

Dial in comfort with a replacement, full-suspension seat the softens bumps, reduces fatigue and extends workdays.


Part: 79107700
Trailer Hitch

Trailer Hitch

Turn your mower into a multitasking machine. With a towing capacity of 500 pounds, this easy-to-install, heavy-duty steel hitch pulls trailers, spreaders, rollers, dethatchers and more.

Part: 79108500
LED Headlight Kit

LED Headlight Kit

Mow longer, later, and safer with a headlight kit from Gravely. These blazing LEDs illuminate your cutting path in low-light conditions as dusk approaches.

Part: 79108600
Aggressive Tread Tire

Aggressive Tread Tire

Hold slopes with confidence and reduce turf scuffing with an upgraded tread pattern.

Part: 79108900
Rear Tweels

Rear Tweels

Upgrade your Gravely mower with a commercial tweel kit. These airless, run-flat tires help to minimize your downtime, and cushion your ride by dampening the effect of uneven terrain.

Part Number: 79702900
Maintenance Kit

Maintenance Kit

Tune up your Gravely zero-turn, allowing it to consistently perform at industry leading levels by completing routine maintenance using these factory authorized OEM parts.

70721300 - Services KT735-3056,  KT740-3068, KT745-3069, KT740-3089, KT745-3086
70721700 - Services FR651V, FR691V, FR730V, FS600V




Powered 2-Bin Bagger

Powered 2-Bin Bagger

Save time, energy and money by keeping your lawn clean and free of grass clippings, giving it a well manicured look time after time. Select mounting kit required (791063 - 44"/48") (791065 - 52") (791066 - 60")

Part: 89100800
Mulching Kit

Mulching Kit

This specialized, non-discharging baffle and blade kit recuts grass clippings into a fine mulch, eliminating cleanup time and returning rich nutrients back to your soil for a naturally lush lawn.

44" Kit: Part 79109500
48" Kit: Part 79109600
52" Kit: Part 79220200
60" Kit: Part 79109800
Front Caster Suspension Forks

Front Caster Suspension Forks

Smooth the ride on bumpy terrain with Gravely OEM suspension forks. They’re specially designed to deliver more comfort and control when your mower is on the job.

Part: 79108300
Full Suspension Seat

Full Suspension Seat

Dial in comfort with a replacement, full-suspension seat the softens bumps, reduces fatigue and extends workdays.


Part: 79107700
Trailer Hitch

Trailer Hitch

Turn your mower into a multitasking machine. With a towing capacity of 500 pounds, this easy-to-install, heavy-duty steel hitch pulls trailers, spreaders, rollers, dethatchers and more.

Part: 79108500
LED Headlight Kit

LED Headlight Kit

Mow longer, later, and safer with a headlight kit from Gravely. These blazing LEDs illuminate your cutting path in low-light conditions as dusk approaches.

Part: 79108600
Aggressive Tread Tire

Aggressive Tread Tire

Hold slopes with confidence and reduce turf scuffing with an upgraded tread pattern.

Part: 79108900
Rear Tweels

Rear Tweels

Upgrade your Gravely mower with a commercial tweel kit. These airless, run-flat tires help to minimize your downtime, and cushion your ride by dampening the effect of uneven terrain.

Part Number: 79702900
Maintenance Kit

Maintenance Kit

Tune up your Gravely zero-turn, allowing it to consistently perform at industry leading levels by completing routine maintenance using these factory authorized OEM parts.

70721300 - Services KT735-3056,  KT740-3068, KT745-3069, KT740-3089, KT745-3086
70721700 - Services FR651V, FR691V, FR730V, FS600V
